Coswheel T26 Cargo OFF-ROAD Electric Bike

Description

7-Speed Gearing

T26 is fully equipped with Shimano seven-speed cassette, which allows you to drive smoothly and climb easily on steep roads.

Adjustable Seat

The seat is adjustable, suitable for people with a height of 5.3-6.8(ft) to ride.

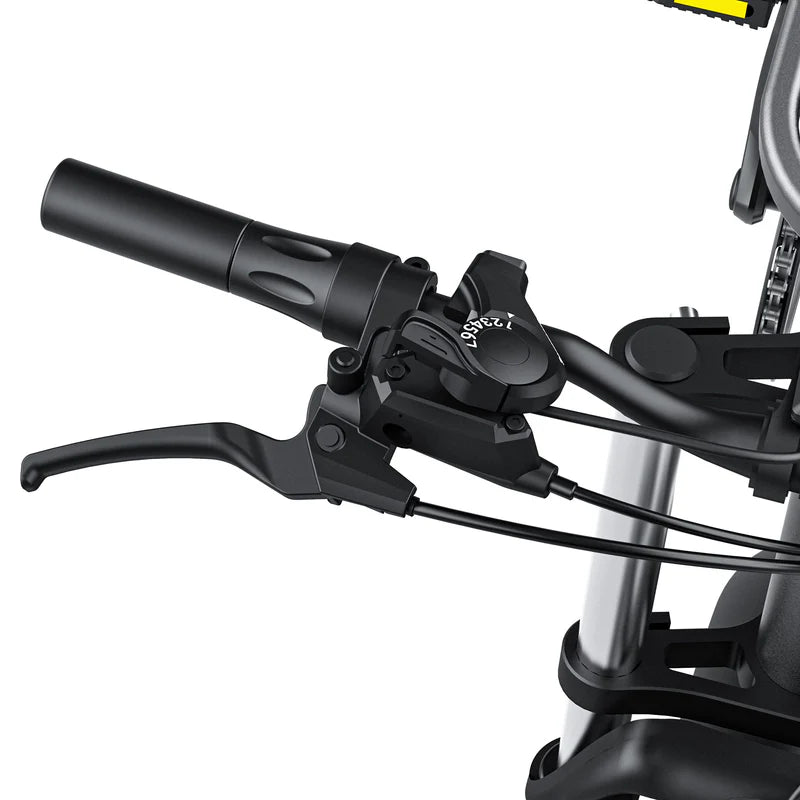

Oil Brake

Front and rear motorcycle-level dual-piston hydraulic oil brakes, equipped with 180MM high-quality brake discs, make your riding safer.

26″ Fat Tire

T26 is equipped with 26″*20″ all-terrain tires, which can pass through various roads easily.

Front Rear Suspension

Both front and rear shock absorption, suspension travel 180MM, good resilience, so you are not afraid of any road.

Different Experience

The T26 is equipped with a high-speed brushless motor with a peak value of 1500W (rated at 1000W), with an instantaneous maximum current of 28AH and a torque of 80N.m, allowing you to easily shuttle between cities and country roads.

Go Far Away Happily

T26 provides three high-quality 18650 lithium battery options of 1200Wh (25AH), with a battery life of up to 87miles (140km) and a maximum speed of 28MPH (45KM/H), which is legal and meets Class 2 and Class 3 mode, please ride with confidence.

Redefince Cycling

T26 can be commuted and off-road, making your trip different.

Specification:

• Top Speed: Class 2/3, 28 Mph (45Km/h)
• Range: 30-50+miles (48-80km) in Class-2 throttle-only mode (pure electricity); 70-87+miles (113-140km) in Class-1 PAS (pedal assist)
• Motor: 48V Peak 1500W (Rated 1000W) Brushless Rear Hub Motor 80N.m
• Battery: 48V 25Ah Battery (Lithium 18650 Cells)
• Energy: 1200Wh
• Front Suspension: 26″ Full Aluminum Double Shoulder Snow Suspension, 80mm Travel
• Rear Suspension: 850 Pounds, 180mm Travel
• Brakes: Double Piston Oil Brake, Equipped with 180mm Stainless Brake Disc
• Tires: CHAOYANG Off-road Tire 26″ * 4.0″ H5176 30TPI with AV+ Lining Belt
• Throttle: Grip Twist Throttle
• Charger: 48V3A Charger
• Charging Time: 3.5-8.0 Hours
• Display: Easy Read LCD Display
• Controller: 48V 28A
• Front Light: Classic Angel Eye Headlight, 120 LUX
• Rear Light: LED
• Pedal Assist: 5 Levels
• Sensors: Speed Sensor
• Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
• Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
• Crank: 1/2 “*3/32″*46T 7-speed ED Tooth Plate
• Rear Derailleur: Shimano 7-Speed
• Chain: 7-speed Anti-rust, 1/2″ * 3/32″
• Handlebars: Bend Handlebar, φ620*31.8*H:30
• Suitable Height: 5’3″ – 6’5″
• Seat Height: 35.4″ (90cm)
• Bike Height: 47.3″ (120cm)
• Wheelbase: 49.2″ (125cm)
• Handlebar Width: 25.6″ (65cm)
• Bike Weight: ≥88lbs (with Battery) (≥40kg)
• Maximum Load: 330lbs (150kg)
• Safe Load: 265lbs (120kg)
• Overall Size: 70.9″ * 25.6″ *47.3″ (180*65*120cm)
• Package Size: 65″ * 13.4″ * 35.4″ (165*34*90cm)
