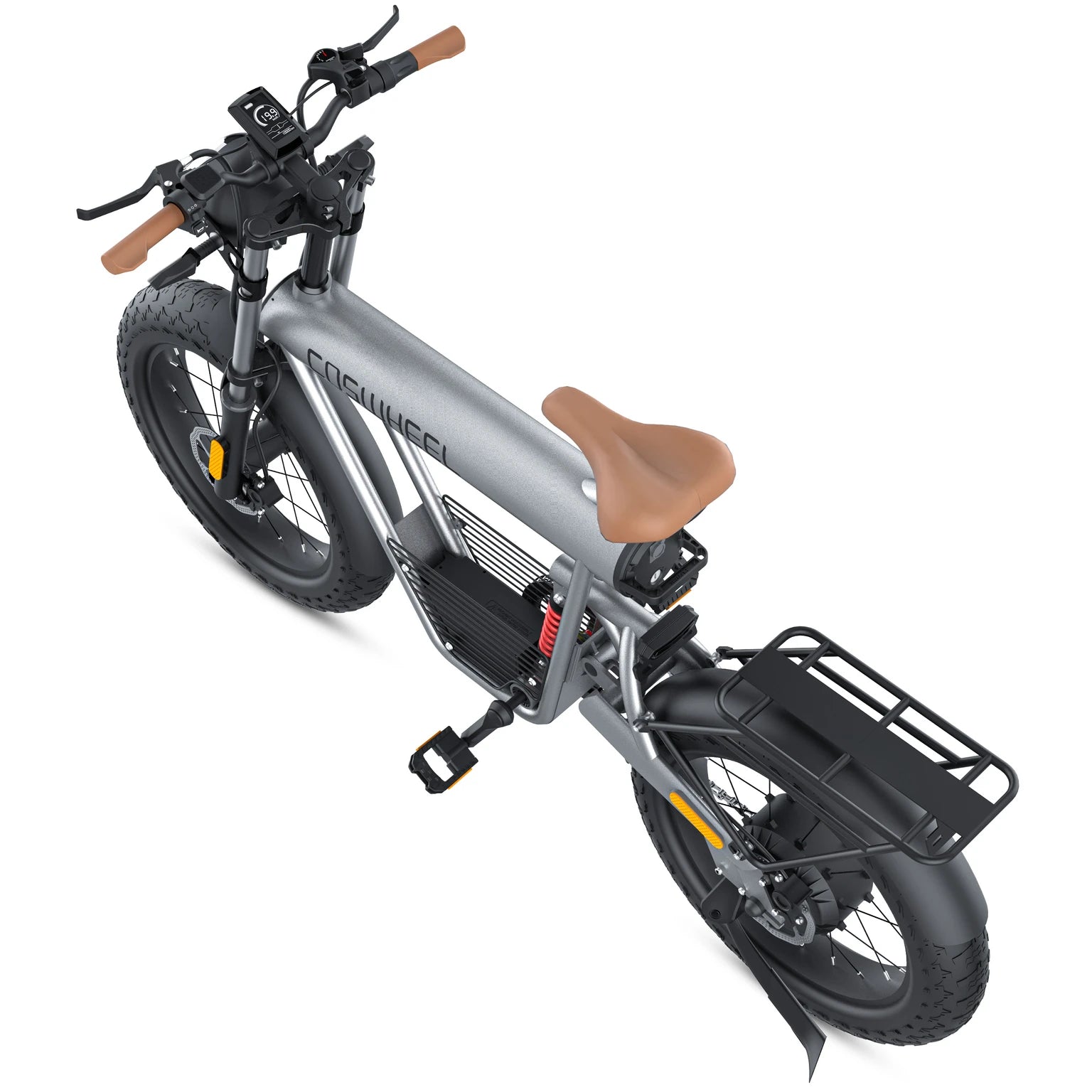

Coswheel T20R Cargo Fat Tire Electric Bike

Description

MAIN FEATURE

7-Speed Gearing

T20R is fully equipped with Shimano seven-speed cassette, which allows you to drive smoothly and climb easily on steep roads.

Aluminum Alloy Frame

The frame is made of fully customized hydraulically formed three-butted 6061-T6 aluminum alloy. It has been tested for more than 30,000 times and is durable and reliable.

Front Rear Suspension

Both front and rear shock absorption, suspension travel 180MM, good resilience, so you are not afraid of any road.

Equipment Rear Shelf

The T20R comes standard with a rear shelf, making it easy to carry people around.

Soft Seat

The T20R is equipped with leather seats, leather handles, and retro angel eye headlights, which is more advanced than the T20.

DIFFERENT EXPERIENCE

The T20R is equipped with a high-speed brushless motor with a peak value of 1000W (rated at 750W), with an instantaneous maximum current of 28AH/25AH and a torque of 50N.m, allowing you to easily shuttle between cities and country roads.

GO FAR AWAY HAPPILY

T20R provides 960Wh (20AH) high-quality 18650 lithium battery with a range of up to 70 miles (113KM) and a max speed of 28MPH (45KM/H). It is legal and complies with Class 2 and Class 3 modes.

DIFFERENCE BETWEEN T20R AND T20

The T20R is an upgraded version of the T20. The T20R is equipped with leather seats, leather handles and retro angel eye headlights, and the motor is upgraded from a peak value of 1000W (rated 500W) to a peak value of 1000W (rated 750W).

Specification:

Top Speed: Class 2/3, 28 Mph (45Km/h)
Range: 40+miles (64km) in Class-2 throttle-only mode (pure electricity); 70+miles (113km) in Class-1 PAS (pedal assist)
Motor: 48V Peak 1000W (Rated 750W) Brushless Rear Hub Motor 50N.m
Battery: 48V 20Ah Battery (Lithium 18650 Cells)
Energy: 960Wh
Front Suspension: 20″ Shoulder Shock Absorbing, 80mm Travel
Brakes: Disc Brake, Equipped with 160mm Stainless Brake Disc
Tires: Chaoyang Sunny Road Tire 20″*4″ IA-5189
Throttle: Grip Twist Throttle
Charger: 48V3A Charger
Charging Time: 3.5-8.0 Hours
Display: Easy Read LCD Display
Controller: 48V 28A
Front Light: Classic Angel Eye Headlight, 120 LUX
Rear Light: LED
Pedal Assist: 5 Levels
Sensors: Speed Sensor
Frame: Hydroformed Triple-Butted 6061-T6 Aluminum Alloy
Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
Crank: 1/2 “*3/32″*46T 7-speed ED Tooth Plate
Rear Derailleur: Shimano 7-Speed
Chain: 7-speed Anti-rust, 1/2″ * 3/32″
Handlebars: Iron, Curved Handle, Matte Black 620L*Φ31.8*H: 30 High
Suitable Height: 5’3″ – 6’8″
Seat Height: 35.8″ (91cm)
Bike Height: 45.3″ (115cm)
Wheelbase: 43.3″ (110cm)
Handlebar Width: 25.6″ (65cm)
Bike Weight: ≥88lbs (with Battery) (≥40kg)
Maximum Load: 330lbs (150kg)
Safe Load: 265lbs (120kg)
Overall Size: 70.9″ * 25.6″ *45.3″ (180*65*115cm)
Package Size: 54.3″ * 11.8″ * 30.7″ (138*30*78cm)
